150kW Motor

£6,450.00

OEM motor, which includes the inverter

Available on backorder

SKU: PT150KW1-1 Category: Tag:

Description

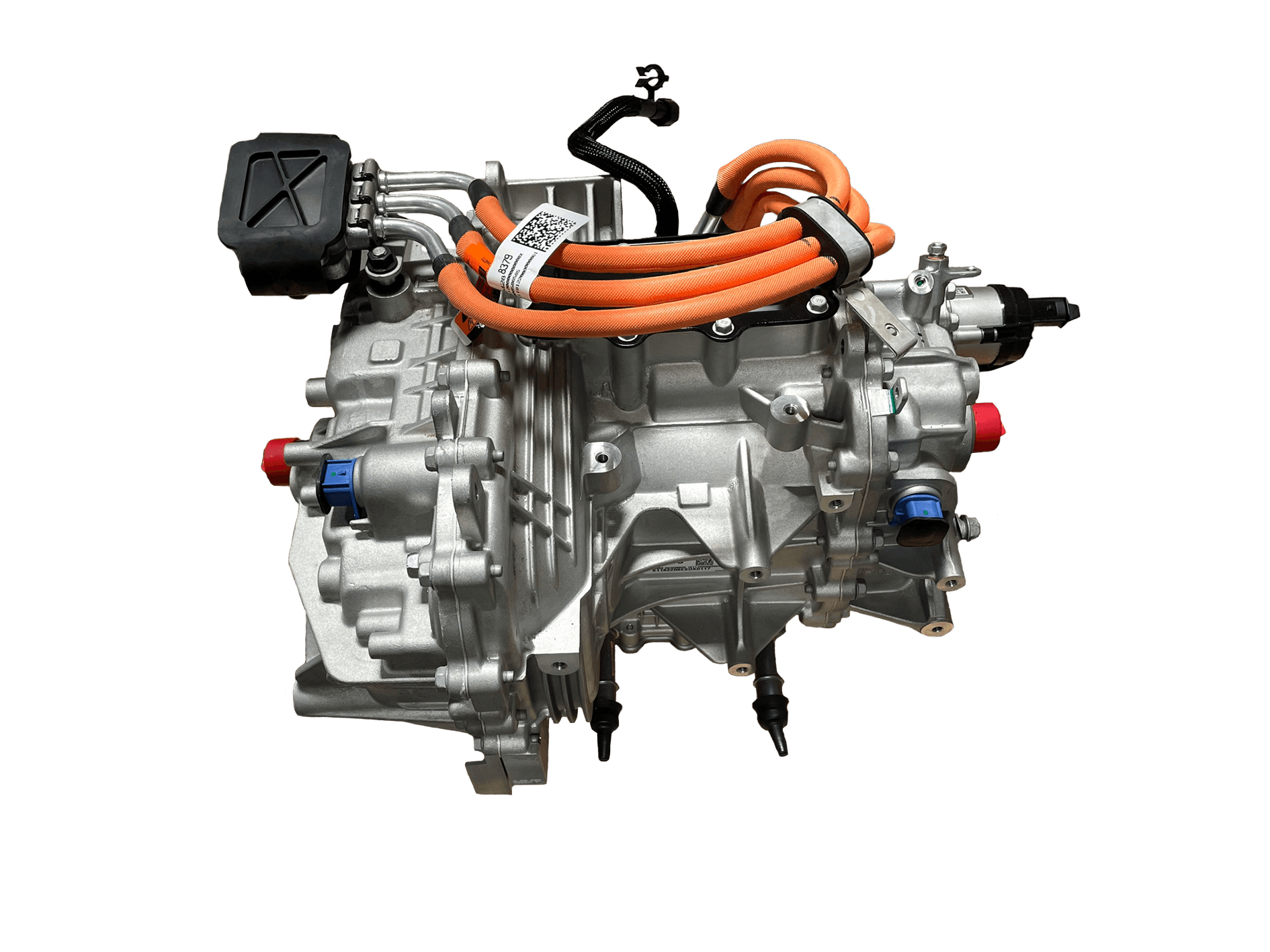

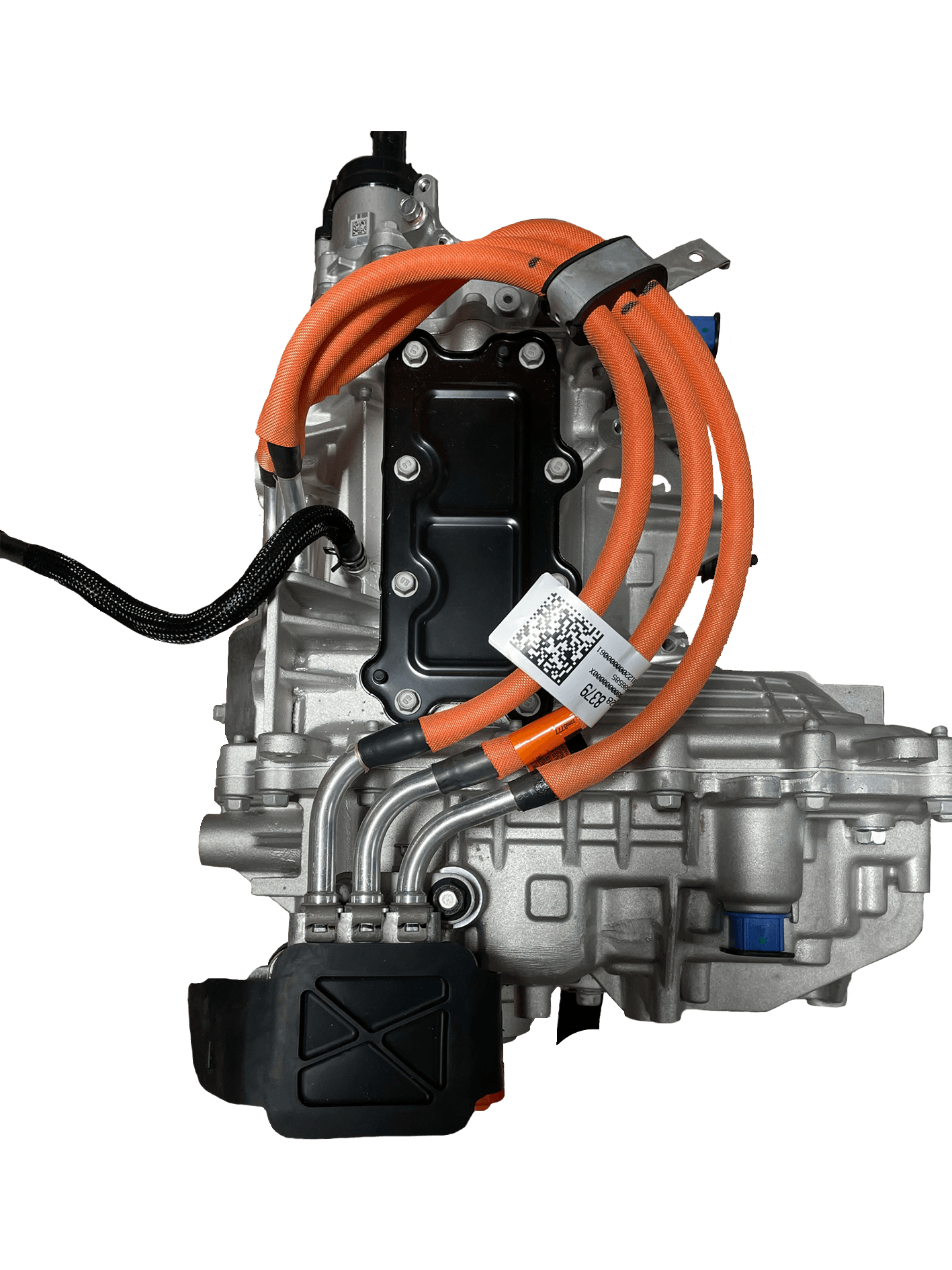

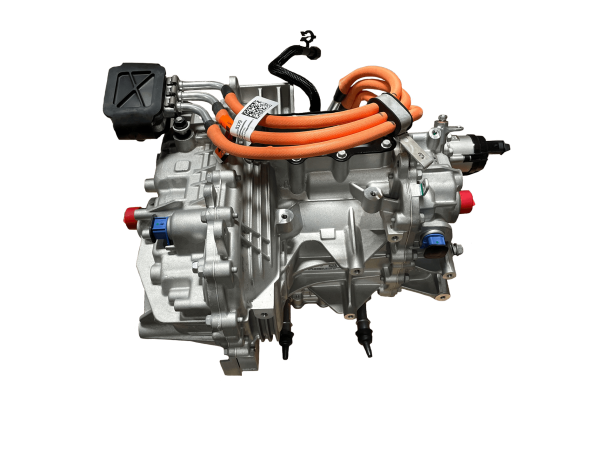

150 kW Electric Engine

OEM motor, which includes the inverter

Specification list:

Motor Type: PSM
Continuous Power Rating (kW): 50
Peak Power Rating (kW): 150
Max. Motor Torque (Nm): 2900
Max. Motor Efficiency (%): >95
Peak Efficiency Motor Speed (rpm): 9800
Max. Motor Speed (rpm): 14,000
Powertrain Assembly Dimensions (mm): 380x330x370
Powertrain Assembly Mass (kg): 53.49





Download 3d Motor Assembly, after download open in pdf viewer

Additional information

Weight 54 kg
